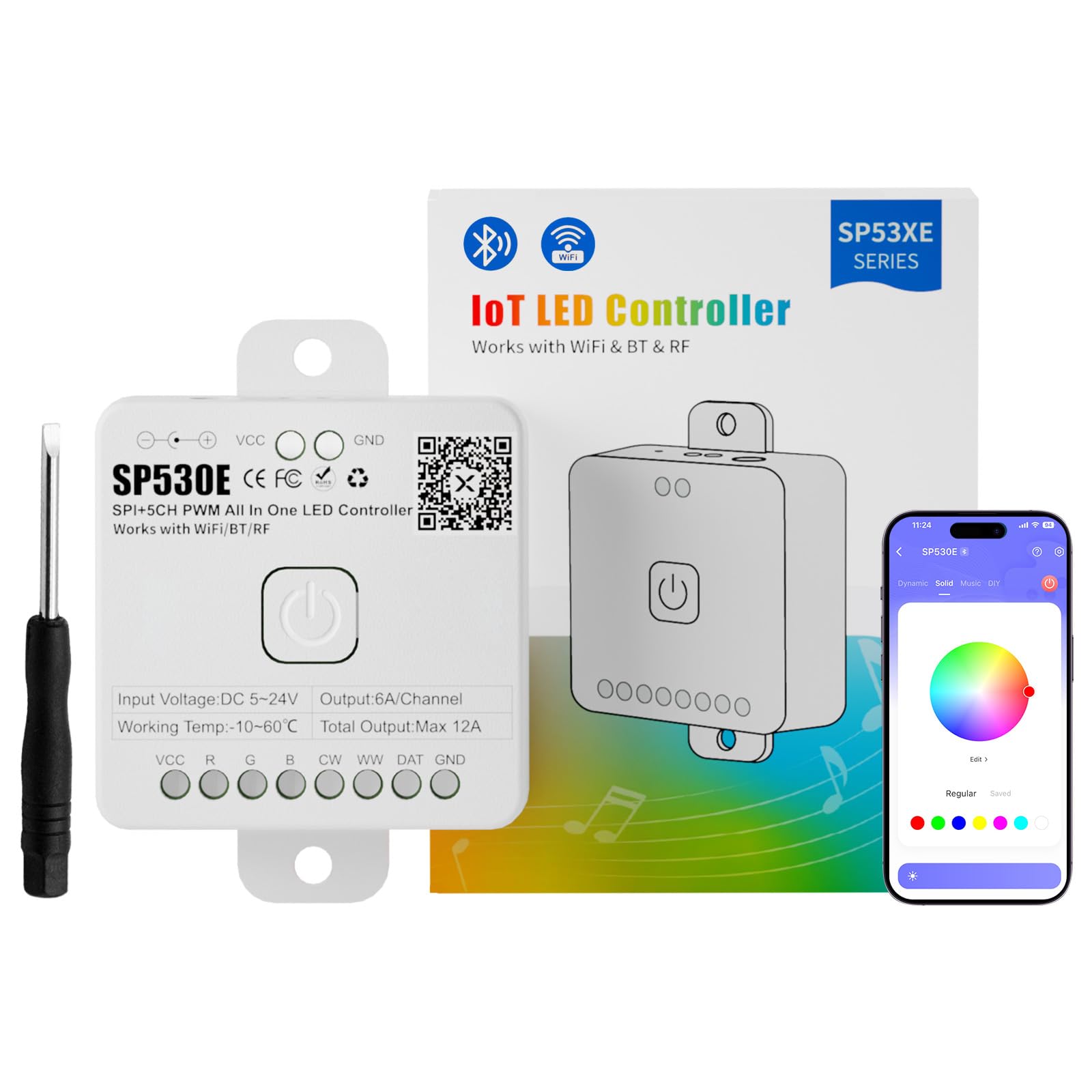

PAUTIX SP530E WiFi Alexa Bluetooth LED Controller Support PWM Monochrome CCT RGB RGBW RGBCCT or SPI TTL IC Chip LED Strip

About this item

• Support PWM LED Strip. PWM LED strip which has no IC chip,fox example COB 5630 5730 5050 2835 3528 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGB+CCT(V+ R G B CW WW).Monochrome Light and CCT light have no function of DIY light effect.
• Support Addressable IC Chip LED Strip and Matrix.SPI TTL IC Chip LED strip and Matrix.WS2812B LED Matrix, 8X8, 8x16, 8x32, 16x16, 32x32 etc, MAX1200pixel. 3pin(V+ Data GND) or 4pin(V+ Data Backup GND). For example WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 LB1934 IC chip etc single color ,CCT ,RGB ,RGBW,RGB+CCT addressable LED strip.Can not support SK9822 WS2801 etc Data+Clock LED strip.Monochrome Light and CCT light have no function of DIY light effect
• Support SPI+PWM LED Strip at the same time. Compatible with all PAUTIX COB LED strip lights! For example you can controller PAUTIX RGB smart IC COB LED strip + COB 3000K single color no IC strip or PAUTIX RGB smart IC COB LED strip + CCT COB no IC strip.

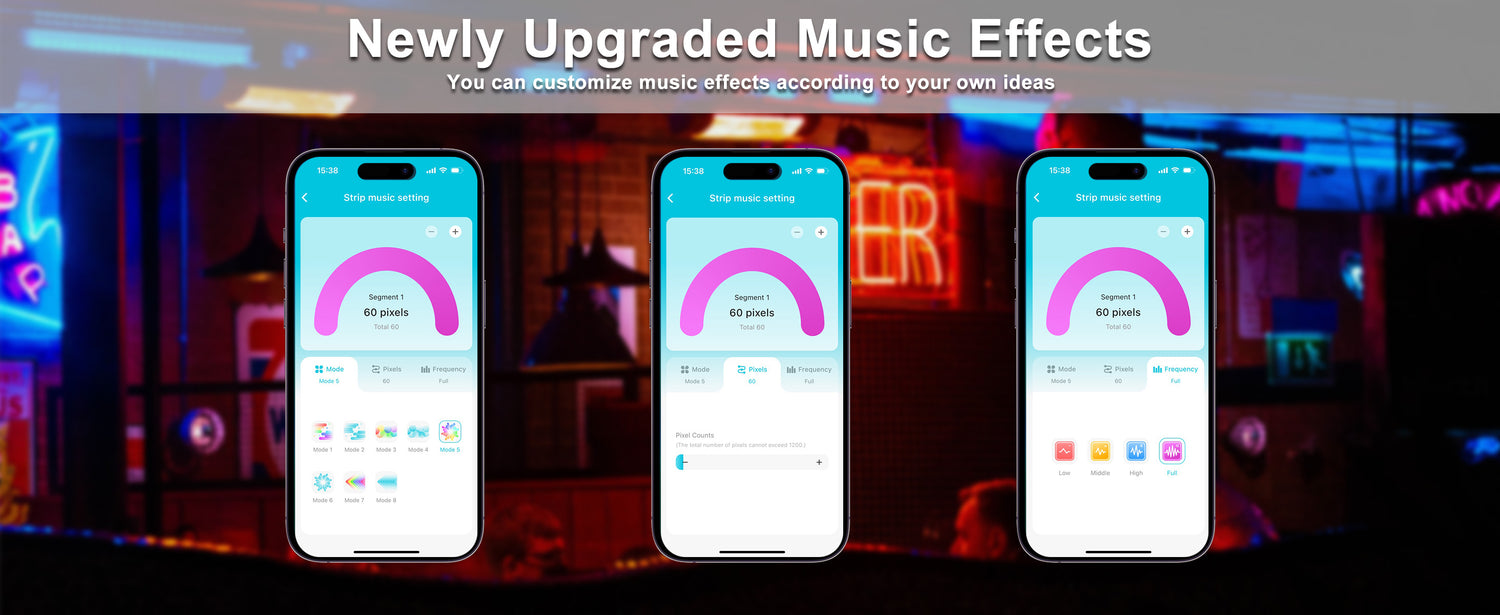

• Newly Upgraded Music Effect Modes. Light strip music effect: You can configure multiple music effects on the same light strip according to their needs, and each section of the light bar can be selected with different music effects, different points, and can be set to correspond to the low, medium and high audio range.
• Light screen spectrum effect: You can flexibly configure the size and alignment of the rectangular light screen, and can set the music spectrum of the fall point and the parameters of the sound column, such as color, saturation and direction, etc., which can achieve a more unique music spectrum effect.
• Color calibration. When the app color is inconsistent with the color of the LED strip, the color can be calibrated to make it consistent.
• Timing function.You can set up to 5 timers.With memory function in case of power-down.Support Power On/Off Effect Setting, Fun Switch Setting, Default Switching State Setting.
